70,000.00 / 4.08KG( + 18% GST applicable)
| Business Type | Supplier |
| Application | Small retail stores and shops. Doctor’s offices and clinics. Small restaurants and cafes. Small comm |
| Compatibility | Remote Annunciators: Supports FSD901-U3/R3 LED/LCD display units. Printer: Supports a supervised rem |
| Flexibility | Power Flexibility: Features a powerful 170-Watt power supply and supports up to 18 AH batteries, wit |
| Click to view more | |
Product Details
Operation
Features four Form C relays for Alarm, Trouble, Supervisory, and User Programmable events.
Packaging
The 50-point addressable system uses the Model FH901-U3 (black) or FH901-R3 (red) enclosure, which s
Display Activity
Features a 3.5-inch by 1.5-inch, 160x64 dot, backlit liquid-crystal display (LCD).
Initiating Circuit Monitoring
LED Indicators: Includes LEDs for Power, Alarm, Trouble, Supervisory, Ground-Fault, and Silence. Eve
Labor Saving Features
Auto-Programming: Automatically recognizes connected detectors and peripheral devices, facilitating
Product Code
FC901
Port
ALL INDIA
Payment Terms
D/P
Delivery Time
7 DAYS
Packaging Details
# Packaging Details
1. Enclosure: 18.1” (46.1 cm) W x 16.5” (41.9 cm) H x 5.11” (13 cm) D.
2. Components: The package typically includes the main board (FCM901-U3), 170W power supply (FP2011-U1), and the system enclosure (FH901-U3/R3).
3. Optional Modules: Available space on the main board for a city-tie module (FCI2020-U1).
4. Weight: Approximately 9 pounds (4082 g) without batteries or operating unit.
5. Mounting: Supports both surface and semi-flush mounting options.
1. Enclosure: 18.1” (46.1 cm) W x 16.5” (41.9 cm) H x 5.11” (13 cm) D.
2. Components: The package typically includes the main board (FCM901-U3), 170W power supply (FP2011-U1), and the system enclosure (FH901-U3/R3).
3. Optional Modules: Available space on the main board for a city-tie module (FCI2020-U1).
4. Weight: Approximately 9 pounds (4082 g) without batteries or operating unit.
5. Mounting: Supports both surface and semi-flush mounting options.

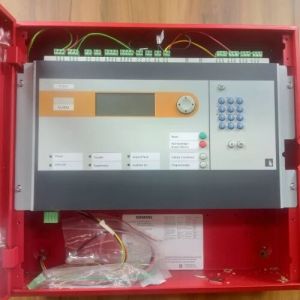

The Siemens FC901 (Cerberus PRO) is a 50-point addressable fire alarm control panel designed for small, compact applications, featuring a 170W power supply, built-in DACT, and a 3.5-inch LCD display. The panel supports 50 addressable devices and includes 4 'Form C' relays.
Looking for "model fc901 50-point fire alarm control panel" ?
4.08KG
